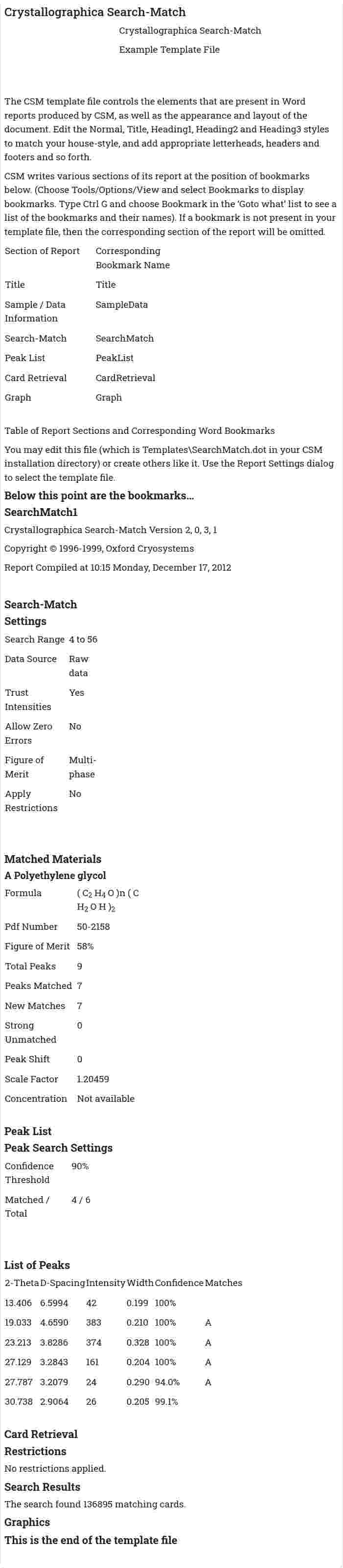

Crystallographica Search-Match

Example Template File

The CSM template file controls the elements that are present in Word reports produced by CSM, as well as the appearance and layout of the document. Edit the Normal, Title, Heading1, Heading2 and Heading3 styles to match your house-style, and add appropriate letterheads, headers and footers and so forth.

CSM writes various sections of its report at the position of bookmarks below. (Choose Tools/Options/View and select Bookmarks to display bookmarks. Type Ctrl G and choose Bookmark in the ‘Goto what’ list to see a list of the bookmarks and their names). If a bookmark is not present in your template file, then the corresponding section of the report will be omitted.

Section of Report	Corresponding Bookmark Name
Title	Title
Sample / Data Information	SampleData
Search-Match	SearchMatch
Peak List	PeakList
Card Retrieval	CardRetrieval
Graph	Graph

Table of Report Sections and Corresponding Word Bookmarks

You may edit this file (which is Templates\SearchMatch.dot in your CSM installation directory) or create others like it. Use the Report Settings dialog to select the template file.

Below this point are the bookmarks…

SearchMatch1

Crystallographica Search-Match Version 2, 0, 3, 1

Report Compiled at 10:15 Monday, December 17, 2012

Search-Match

Settings

Search Range	4 to 56
Data Source	Raw data
Trust Intensities	Yes
Allow Zero Errors	No
Figure of Merit	Multi-phase
Apply Restrictions	No

Matched Materials

A Polyethylene glycol

Formula	( C₂ H₄ O )n ( C H₂ O H )₂
Pdf Number	50-2158
Figure of Merit	58%
Total Peaks	9
Peaks Matched	7
New Matches	7
Strong Unmatched	0
Peak Shift	0
Scale Factor	1.20459
Concentration	Not available

Peak List

Peak Search Settings

Confidence Threshold	90%
Matched / Total	4 / 6

List of Peaks

2-Theta	D-Spacing	Intensity	Width	Confidence	Matches
13.406	6.5994	42	0.199	100%
19.033	4.6590	383	0.210	100%	A
23.213	3.8286	374	0.328	100%	A
27.129	3.2843	161	0.204	100%	A
27.787	3.2079	24	0.290	94.0%	A
30.738	2.9064	26	0.205	99.1%

Card Retrieval

Restrictions

No restrictions applied.

Search Results

The search found 136895 matching cards.
